Accelerometers are used to trigger the airbags as the sensor would send a signal when it experiences a sudden shock. The dominant device design used for airbag accelerometers uses capacitive sensing.

Airbag And Crash Detection Nxp Semiconductors

Airbag sensors are actually small electronic pieces that sense when an accident has taken place.

. Application Details Block Diagram Interact with an application. Multiple accelerometers detect abrupt changes in acceleration. How it works - MEMS Accelerometer in airbag systems.

Airbag sensors can be used to detect how many people are in the vehicle and measure wheel speed impact and brake pressure. Automotive FXLS90xxx DSI3SPI Automotive Safety Digital Accelerometer FXLS93xxx PSI5 Automotive Safety Digital Accelerometer FXLS8471Q. This in turn makes testing a significant challenge.

The ADXL278 is temperature stable and accurate over the. NXP also offers multiple solutions for ECU power management designed to meet airbag application requirements. MEMS accelerometer from ADI with enhanced performance and lower cost.

This paper discusses the possible signal distortions that can occur from accelerometers when they are subjected to forces greater than their calibrated range that are at frequencies above their bandwidth. We offer a broad portfolio of 1- 2- 3- and 6-axis accelerometers supporting low medium and high sensor ranges. ADXL345 is a 3-axis accelerometer that senses both static acceleration due to gravity as well as dynamic acceleration due to motion or shock.

The AIS1120SX AIS2120SX is a central acceleration sensor with a single or dual-axis sensing element and an IC interface able to provide acceleration information to a master control unit via an SPI protocol. The sources of these unwanted inputs and the sensor mechanism that causes them to distort the o. The sensing element capable of detecting the acceleration is manufactured using a dedicated process developed by ST to produce.

STs AIS1xxxDS peripheral-sensor accelerometers provide single-axis in-plane motion sensing across five full-scale ranges from 20 g up to 400 g1. Designed for use in front and side impact airbag applications this product also provides a complete cost-effective solution useful for a wide variety of other applications. This portfolio is ideal for automotive industrial healthcare and IoT applications.

To measure platform stability or tilt. An integrated IC helps transmit data from remote sensors to the main electronic control unit ECU. An on-chip IC interface converts the deceleration data into a high-resolution digital bit stream that is transmitted with high reliability to a dedicated microcontroller chip through a standard.

Sensors and Transducers-PT-68 Airbag. 100 Hz to 800 Hz Configurable communication protocol 2-wire current mode bus interface Selectable sensor data resolution. 8 bit or 10 bit Continuous auto-zero Fully differential sensor and interface circuitry High resistance to EMIRFI.

50 g to 500 g Adjustable filter bandwidth. They are designed to respond to circumstances such as increased pressure resulting from a collision and sudden stopping. The microscopic mechanical element moves in response to rapid deceleration and this motion causes a change in capacitance which is detected by the electronics on the chip that then sends a signal to fire the airbag.

Accelerometers help drones to stabilize their orientation midflight. Accelerometers used in rotating machines detect undulating vibrations. It is a MEMS accelerometer consisting of a polysilicon surface-micro-machined structure built on the top of a Polysilicon wafer.

So it can be used as a tilt sensor or to detect free fall. The airbag sensor is a MEMS accelerometer which is a small integrated circuit with integrated micro mechanical elements. Features and Benefits Product Details Wide sensor range.

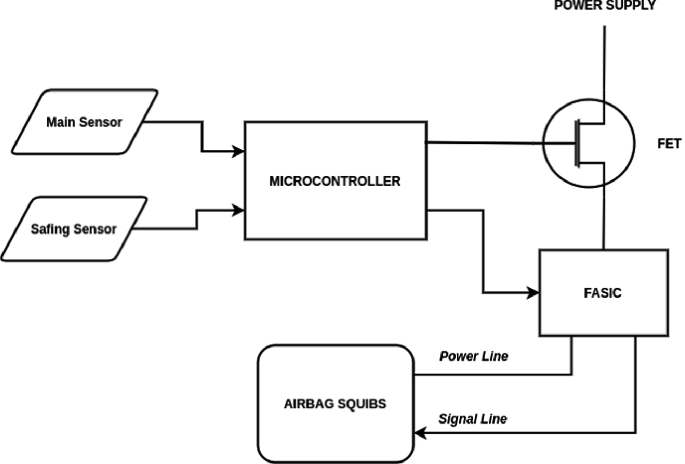

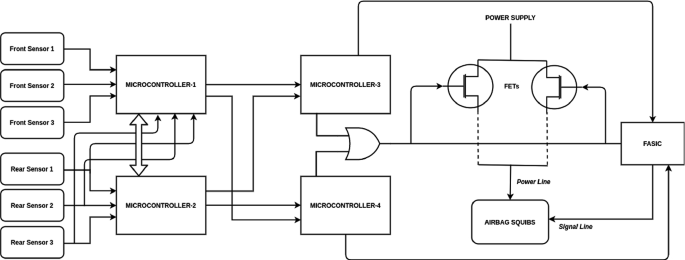

Synoptic View Of The Airbag System Download Scientific Diagram
